IMPACT HIDIN™

Covert Micro-Speaker Listen Only Earpiece

Agency Quote

100%

SITUATIONAL AWARENESS

0%

EAR FATIGUE

100%

BACKED BY SHEEPDOG

"THE HIDIN IS STANDARD ISSUE FOR ALL OUR DEPUTIES.”

Trusted

Used by professionals across the globe

Privacy

Keep mission critical radio comms secure

Discreet

Impact's most covert audio accessory

Support

Dedicated LEO support for all HIDIN products

Trusted

Used by professionals across the globe

Privacy

Keep mission critical radio comms secure

Discreet

Impact's most covert audio accessory

Support

Dedicated LEO support for all HIDIN products

HIDIN Options

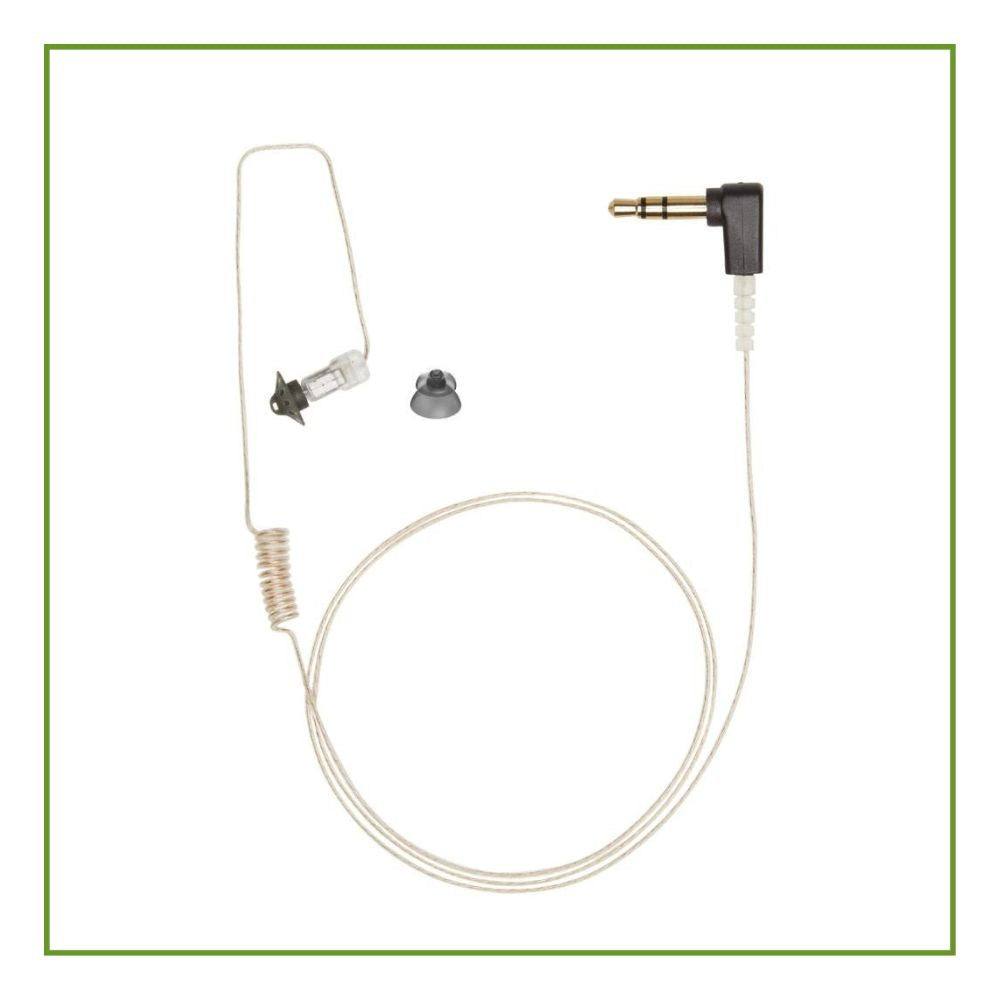

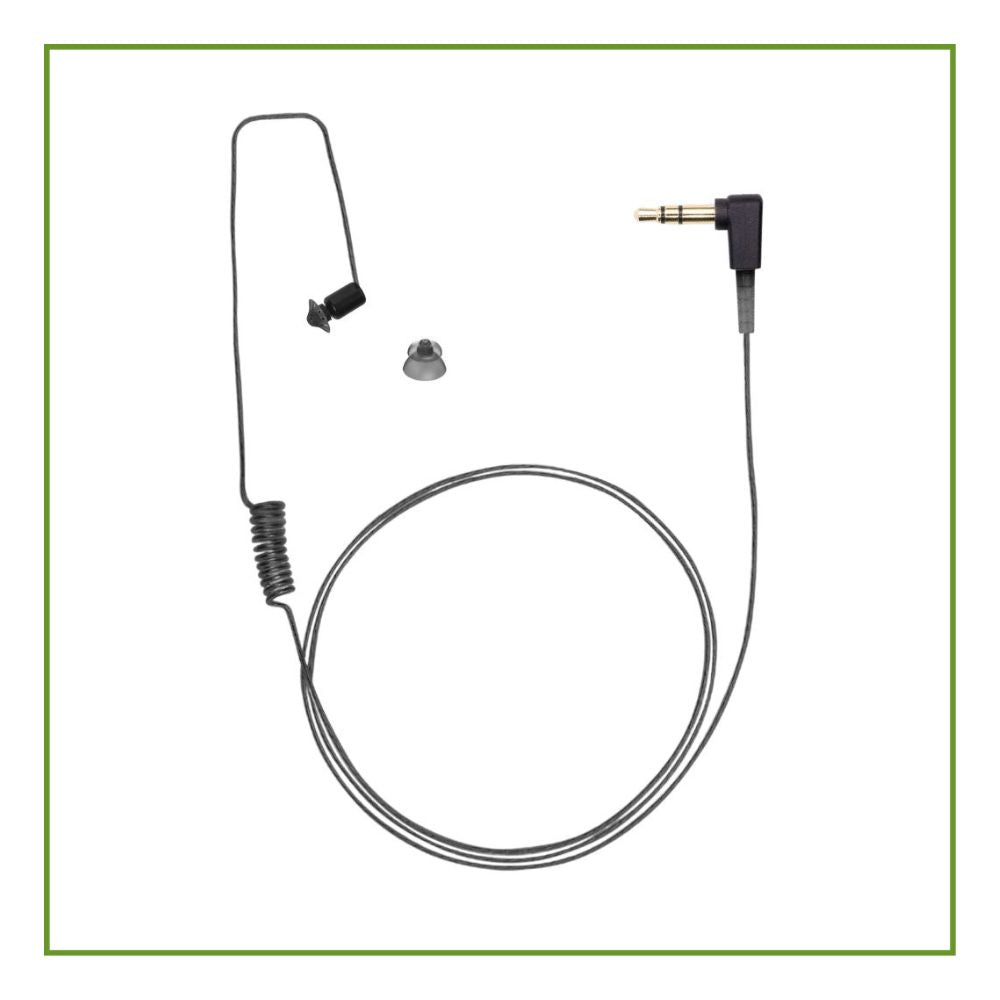

Now available in Clear or Black, 12 or 22-Inch Cables, with 3.5mm or 2.5mm Connectors.

Hidin 2
Hidin 3

IMPACT HIDIN™

Impact's most covert surveillance kit option, perfect for public safety, security, military and hospitality industry workers. The HIDIN earpiece is amplified to meet the needs of high noise environments, ensuring you won't miss important communications.

View Products

HIDIN FEATURES

Micro Speaker

Experience the most comfortable earpiece in a small, unobtrusive package.

Dynamic Audio

Delivers crystal-clear audio, ensuring you never miss a radio call.

Durable Construction

Built with durable strain reliefs. Suitable for most environments.

Wire Colors

Choose from clear or black wires. Blends discreetly with your uniform.

Connector Options

Available in 3.5mm and 2.5mm, ensuring connectivity with mic.

Cable Lengths

Available in 12 or 22-inch, for shoulder or chest mount configurations.

SPEAKER - ELECTRICAL SPECIFICATIONS

A speaker's power rating details the amount of power that it can safely handle.

Rated: 2mW
Maximum: 3mW

Sound Pressure Level (SPL) is a ratio of sound pressure and reference sound pressure, expressed in decibels (dB).

Speaker Component:
117dB±3dB/360mV@1KHz

Micro In-Ear Speaker:
108dB±3dB/360mV@1KHz

150± 15% ohm

PRODUCT RELIABILITY TESTING

Temperature storage testing determines the effect of time and temperature on an electronics device.

Optimal Temperature Range:
-30℃; 24H to 55℃; 24H.

Drop testing evaluates a product’s ability to withstand being dropped.

Test with No Failures:
152.0cm (60-Inches); 10 times

Bend Testing is a critical method used to evaluate the pliability and endurance of cables and wires under repetitive flexing conditions.

Test: ±90°; 30cycles/min; 100g load; 10,000 cycles.

Insertion and withdrawal testing involves applying and measuring the compressive force to an object to push it into a recepticle, then measuring the tension force to pull it out.

Test: 15cycles/min; 10,000 cycles.

Corrosion testing (salt spray test) is a standardized test method used to check corrosion resistance of materials and surface coatings.

Results:
5±1% PH=6.5-7.2 33.3~37℃, 24H

Electrostatic discharge testing is the process of testing a device's resistance to electrostatic discharge, or ESD.

Results: Connect discharge: 8KV; disconnect discharge: 15KV
