Vest Mounted Antenna System (VMAS), 30 - 512MHz, BNC - Sheepdog Microphones

Vest Mounted Antenna System (VMAS), 30-512MHz, BNC

Name: Vest Mounted Antenna System (VMAS), 30-512MHz, BNC
Brand: DISCO32
Price: 82.0 USD
Availability: OutOfStock
Rating: 4.5 (2 reviews)

$82.00

Sold out

SKU: VMAS-BNC-BK

SLEEVE COLOR:Black

Variant

GOVERNMENT QUOTE

×

Submit information below to receive a quote by email.

Your Name* Agency / Company Name* Email Address* Phone Number*

Product SKU

SKU: VMAS-BNC-BK

Quantity Requested*

Message

×

Thank you

Details

PRODUCT
FAQs

PRODUCT

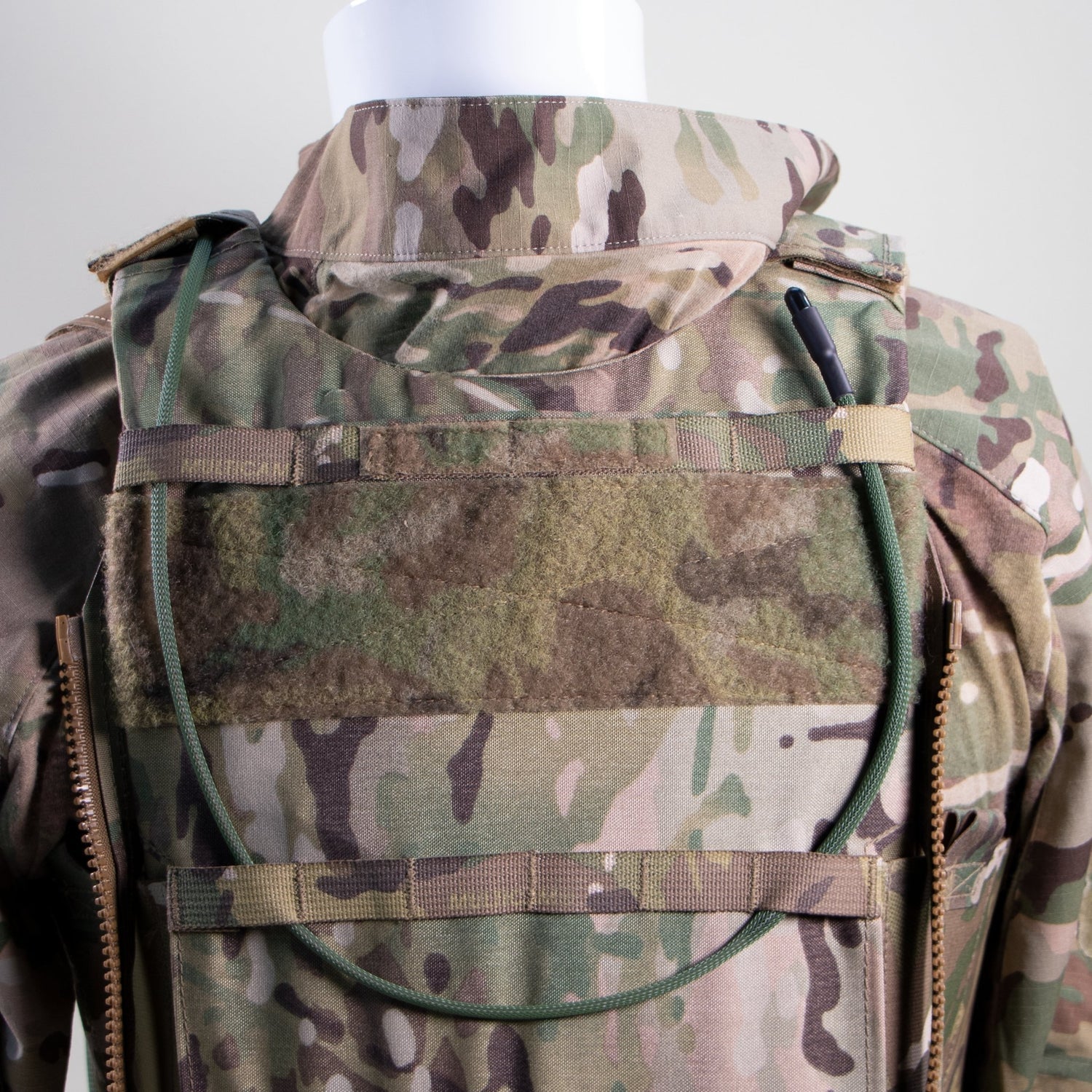

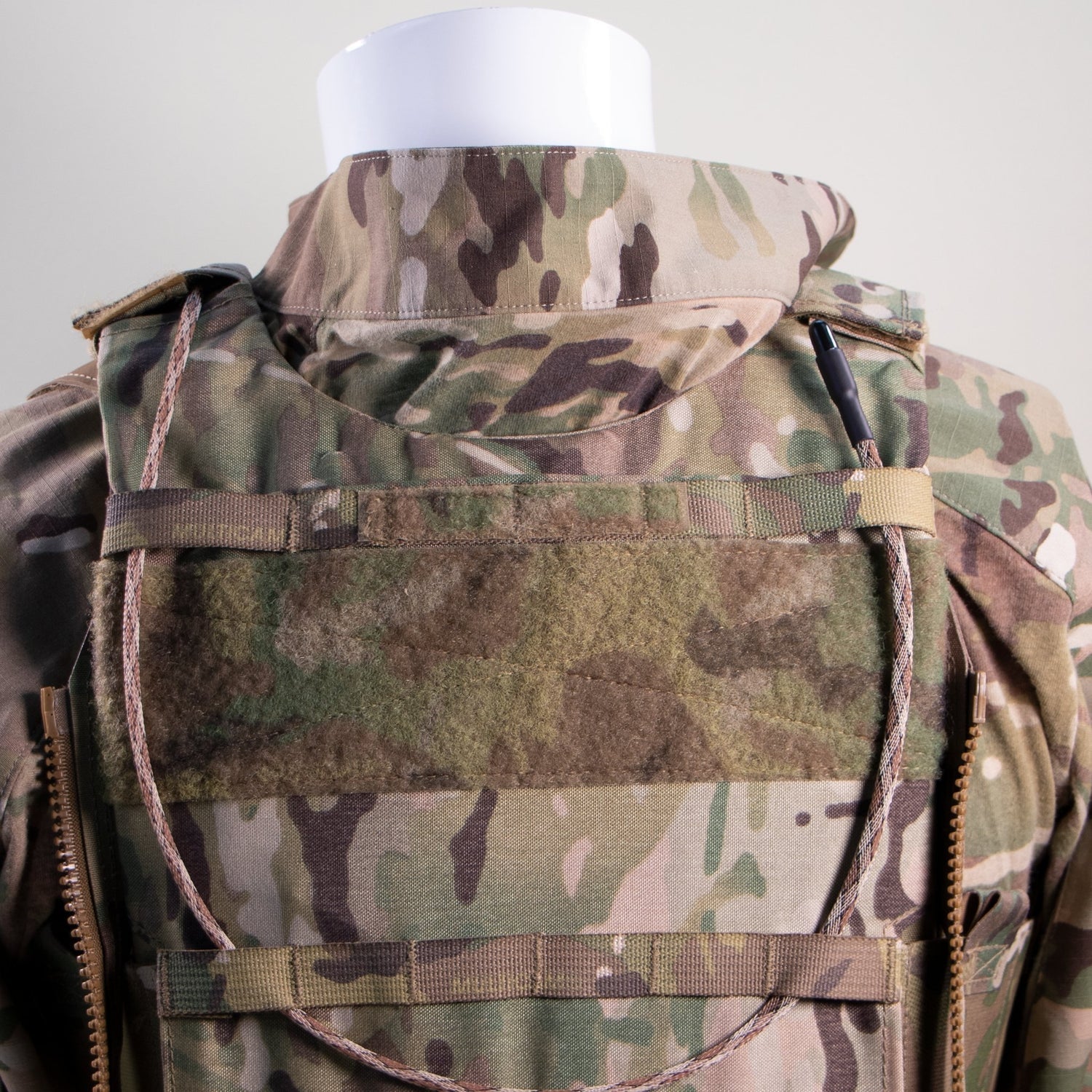

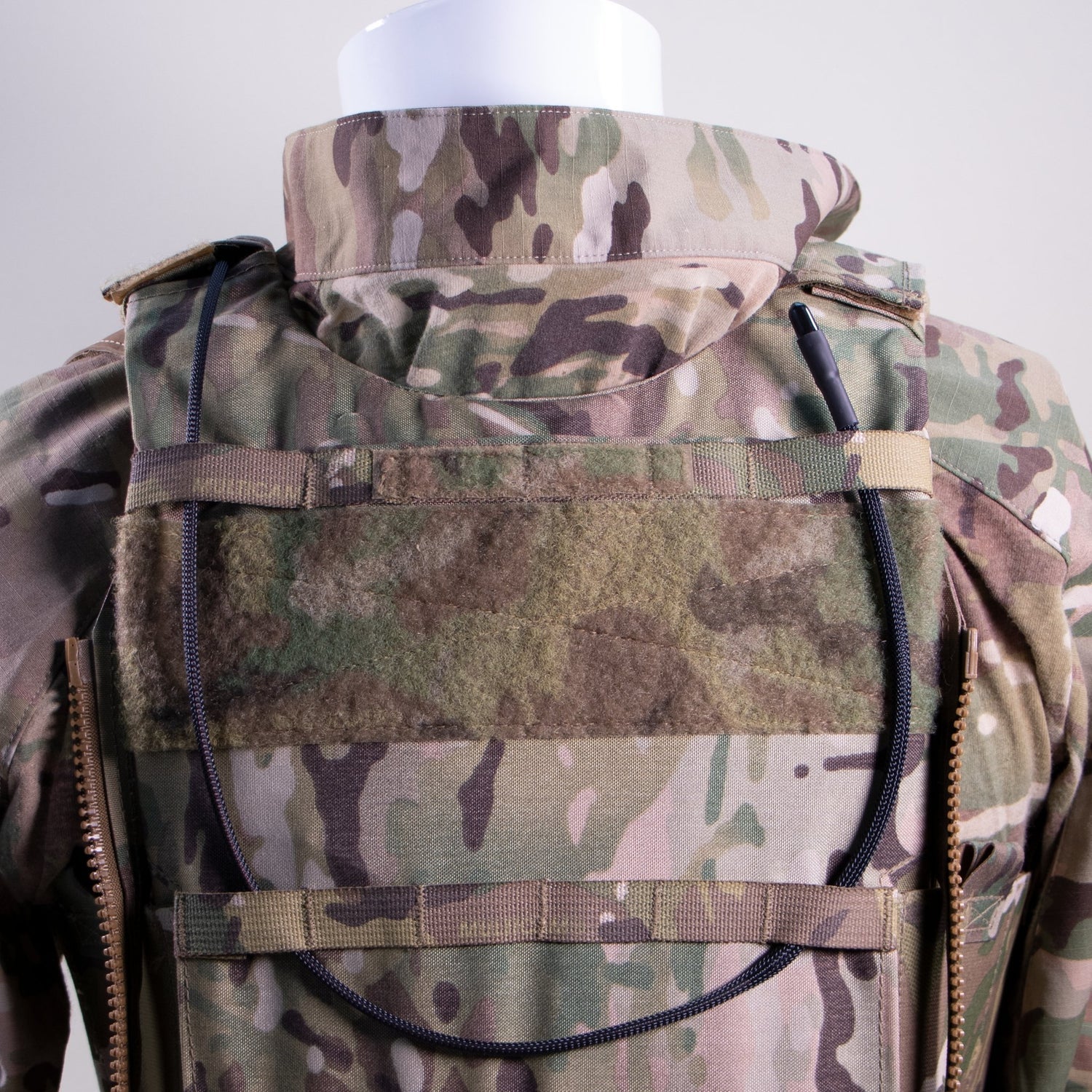

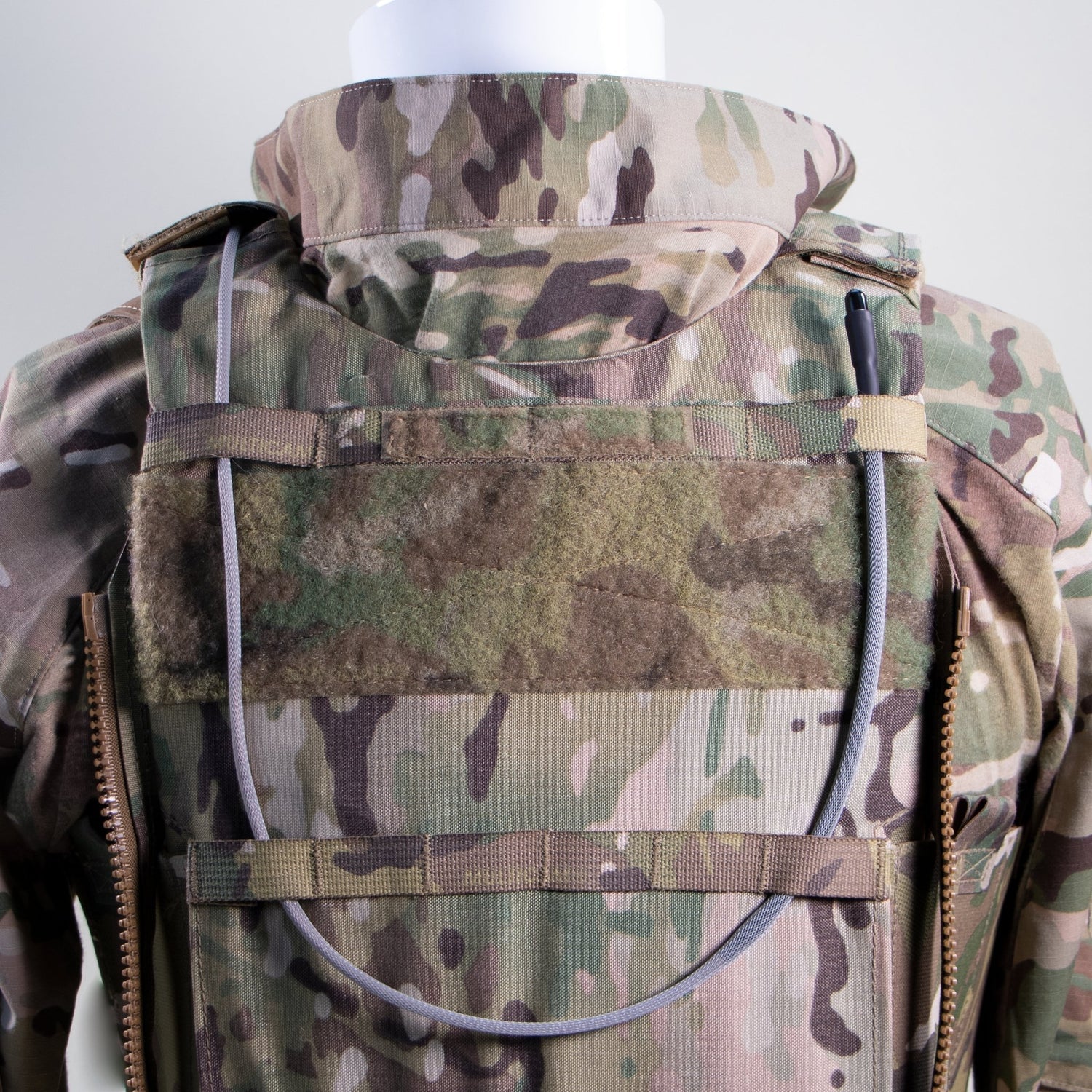

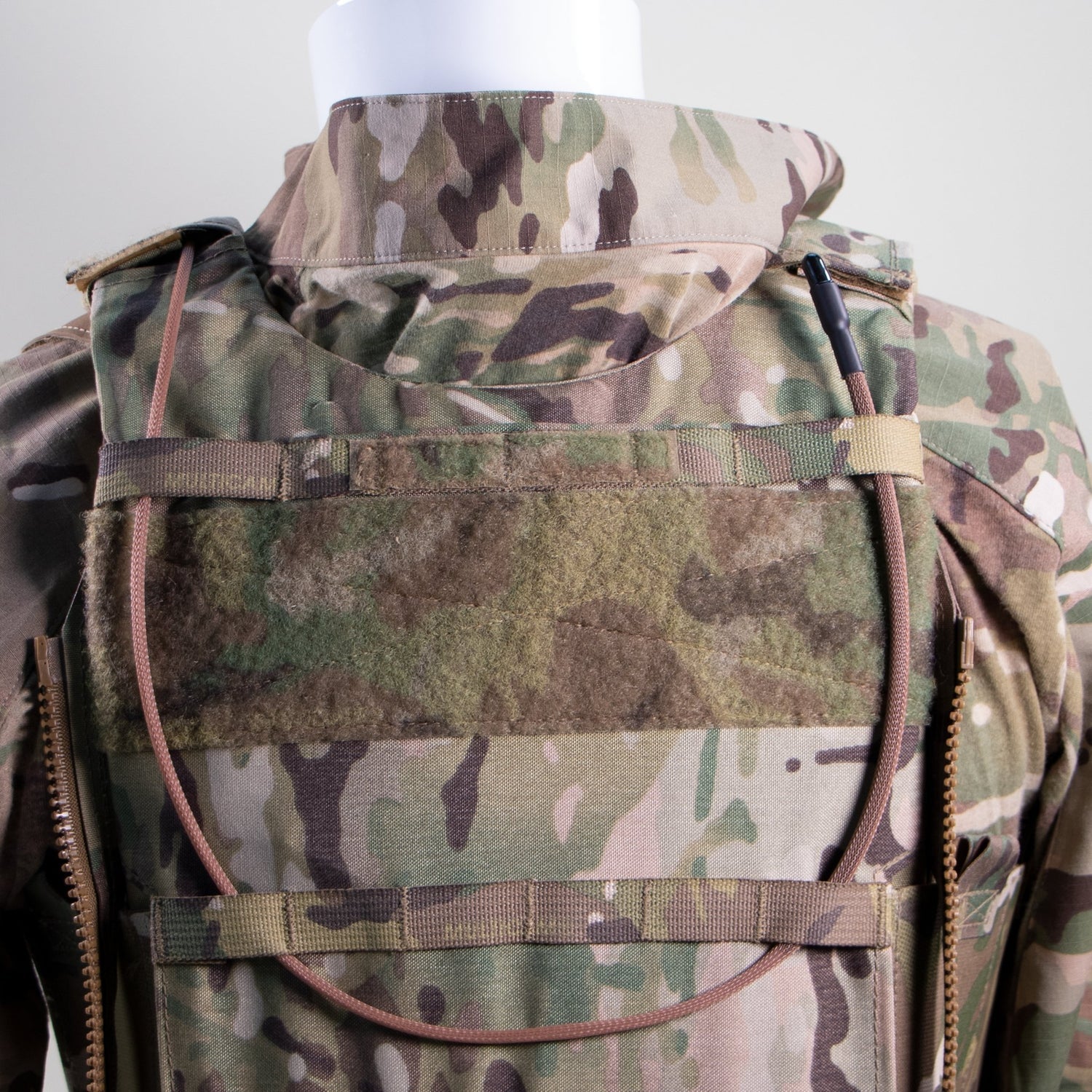

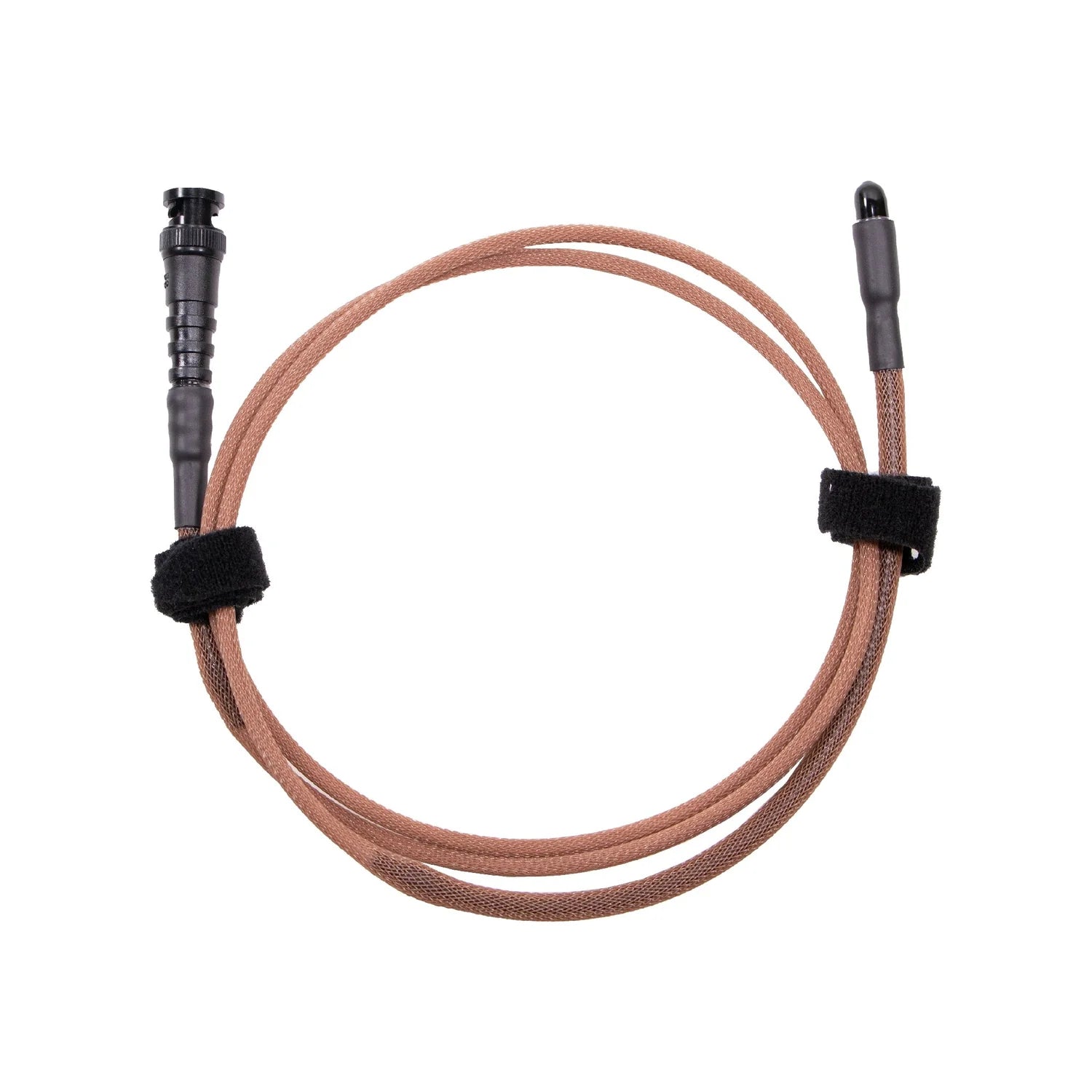

The Vest Mounted Antenna System (VMAS) BNC is a US-made, body-worn antenna, engineered for VHF/UHF handheld radios operating across 30–512 MHz. Optimized for intra-squad communications, the VMAS routes from the handheld radio over the shoulder and into the communicator’s back webbing, keeping vision clear and movement unrestricted.

Tech Note: Not meant for use with for Motorola APX Radios

Durability and Compliance

Protected with an abrasion-resistant sleeve, the VMAS is built to withstand the toughest conditions. It is manufactured with UL and CSA flame-resistant materials (VW-1 rated) and is Berry Amendment compliant, ensuring it meets strict operational standards.

Technical Specs

Frequency Range: 30–512 MHz broadband (VHF/UHF)
Impedance: 50 Ohms nominal
Gain: Up to 3.5 dBi
VSWR: <2.3 (30–110 MHz), <3.5 (110–300 MHz), <4.4 (300–512 MHz)
Polarization: Vertical
Pattern: Omni-directional
Connector: BNC Male
Max Height: 49"
RF Power Capacity: 8W CW
DC Resistance: Infinite

Tactical Advantages
The VMAS BNC offers significant benefits over traditional long whip antennas, including:
Improved concealment – body-worn placement reduces signature.
Unobstructed movement – no antenna whip in front of the operator.
Enhanced performance – optimized for range and reliability across VHF/UHF bands.
Standardized BNC interface – quick, secure bayonet-style connection for military/commercial radios.

Backed by a 1-year manufacturer’s warranty, the VMAS BNC provides operators with a reliable, field-proven antenna solution for a wide array of operational scenarios.

Compatibility note: Designed for APX-series deployments using BNC terminations. Verify your radio/antenna interface before ordering. Quick-disconnect hardware style may vary by production batch; function and fit remain equivalent.

FAQs

What radios are compatible with the VMAS BNC?
Any handheld radio with a BNC connector, or with SMA/TNC adapters for Baofeng, Yaesu, and military radios.

Why use a vest-mounted antenna?
Vest mounting keeps the antenna out of the operator’s line of sight, improves concealment, and prevents snag hazards compared to traditional whip antennas.

What frequency coverage does the VMAS BNC provide?
Broadband 30–512 MHz coverage across VHF and UHF tactical bands.

For Tactical Operators

Antenna Relocation

Improved Line of Sight and Comfort

Sheepdog has a nice quality product here. They have really done their research.

Advanced Relocation

Enhances carrier configuration by moving the radio antenna from the front of your vest/carrier or duty belt to your back.

Line of Sight

Experience improved line of sight (LOS). Popular with SWAT and military using MOLLE/PALS equipment.

Performance

Enhanced performance – optimized for range and reliability across VHF/UHF bands.
